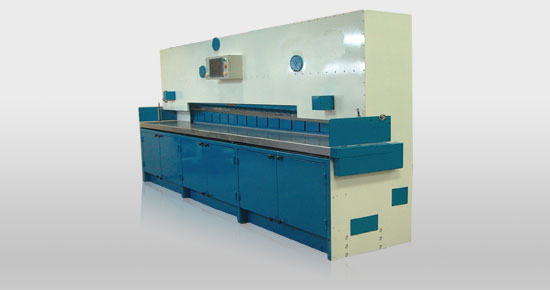

• This machine can make perfect glue joint, that requires exact straight,rectangular and uniform glue speaded edge.

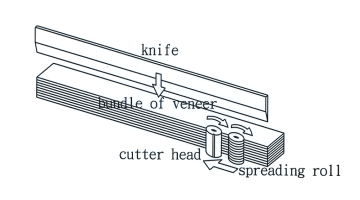

  • Under bundle of veneer clamped situation,three processes clipping,shapping and spreading are finished in one cycle.

Specification LG-W 2000G LG-W 2600G
Veneer Thickness mm 0.2 ~ 1.2 0.2 ~ 1.2
Veneer Length mm 600 ~ 2000 600 ~ 2600
Veneer Width mm 50 ~ 915 50 ~ 915
Veneer Height mm 75 75
Cutter Head Dimension Ø×hmm 100 × 85 100 × 85
Cutter Head Speed RPM 5000 5000
Spreading Roll Dimension Ø×hmm 75 × 100 75 × 100
Glue   UREA Or PVAC Glues
Knife Dimension mm 2100 × 120 × 12 2700 × 120 × 12
Working Height mm 950 950
Control Panel   HMI HMI
Power Supply kw 5 (6.7HP) 5 (6.7HP)
Compressed Air kgs/cm2 5 5
Hydraulic System kw 3.75 (5HP) 3.75 (5HP)
Machine Weight kgs 5000 6000
Measurement mm 3600 × 2150 × 2100 4200 × 2150 × 2100
*Technical data to change without notice
