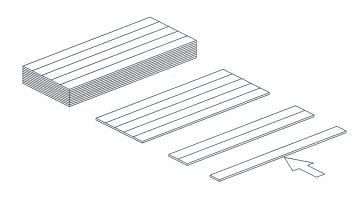

• Suitable for precision splicing of veneer such as door skin, tabletop and wood panels
  • Full-glued joints, high capacities both cut to size and book-matched.
  • No special trained operator is required.

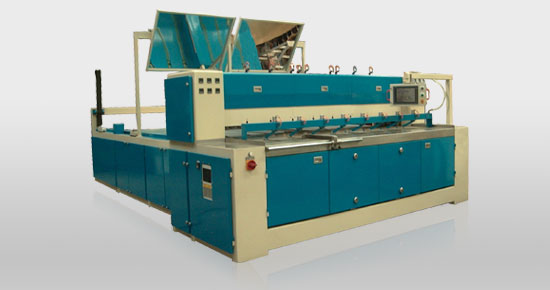

Specification LG-CVS2600
Veneer Thickness mm 0.5 ~ 2.5
Veneer Length mm 1000 ~ 2600
Veneer Width mm 75 ~ 380
Max Veneer Spliced mm 1250 × 2600
Min Veneer Spliced mm 305 × 1000
Pressing Time For Joints Sec. 0.2 ~ 5
Heating-Up Time min 10 ~ 15
Heating Temperature °C 80 ~ 200
Infeed Working Height mm 1050
Total Power Supply kw 25 (33HP)
Main Voltage   as required
Compressed Air kgs/cm2 5
Machine weight kgs 8000
Measurement mm 8200 × 3800 × 2000
*Technical data to change without notice
