• Suitable for the precision splicing of thick veneers for laminated wood floors

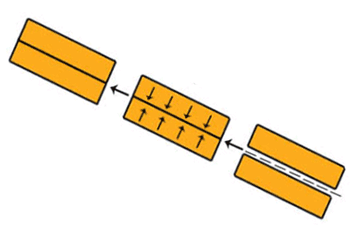

  • Performs splicing through edge gluing and heat curing,leaving no glue line
  • Has a feeding speed of 12M per minute,and veneer thickness of 2.5m/mt.
  • Fully pneumatic automatic control unit does not require experienced operators.

Specification VS 2.5
Veneer Thickness mm 1 ~ 3
Veneer Width mm 75 - 1240
Veneer Length (minimum) mm 350
Feeding Speed m/min 10 - 15
Heating Temperature °C 150 - 200
Total Power Supply kw 7.5 (10HP)
Main Voltage   as required
Compressed Air kgs/cm2 5
Machine weight kgs 2600 (5720 lbs)
Overall Length mm 3300 (130")
Overall Width mm 2050 (80.7")
Overall Height mm 1770 (69.7")
Included tables size mm 2440 x 1220 (96" x 48")
*Technical data to change without notice
