10.4 inch touch screen as standard

Optional: 15 inch touch screen

-Ball-bearing Screw and Linear Rail for repeatability & accuracy
-Dual linear Rail as option
Device for Safety and easy Blade adjustment procedures
Hard Casting worm-gear assures quiet cutting

Electromagnetic Clutch & Brake

Electromagnetic hand wheel for fine tuning

Plexiglas for backside of machine

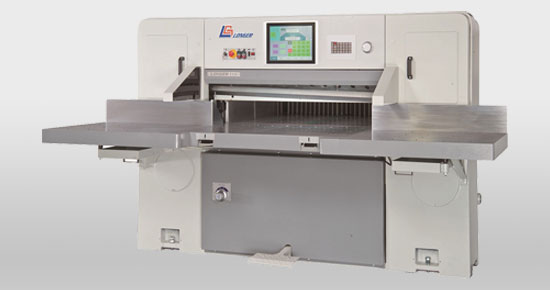

  • Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust Construction ensures stable operation and exact cut off.

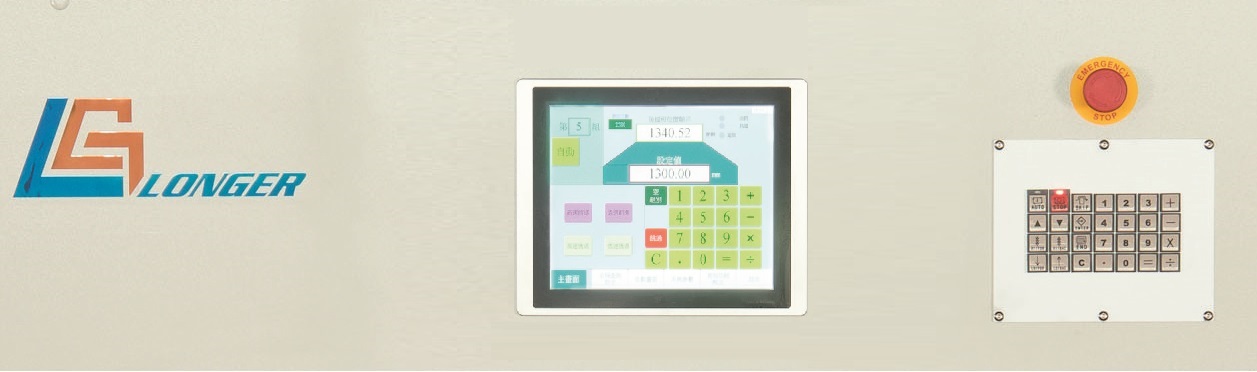

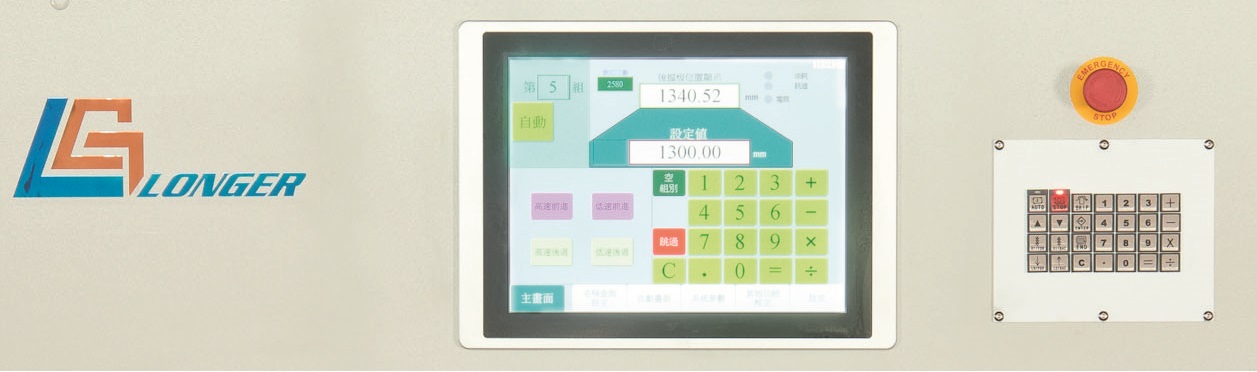

  • Inverter-controlled computer with 10.4 inch touch screen highly precision cut for 0.01m/m. 15 inch touch screen as option.
  • Colorful touch screen with 24,600 point memory allows for free size-setting to increase cutting capacity.
  • Hydraulic system is devised with double-pull type and two-step hydraulic device.
  • Operates by electro-magnetic clutch & brake.
  • Electromagnetic hand wheel fine tuning.
  • Dual worm gear, dual-arm cutting design for speedy and quick cutting.
  • New cutting size can be added to memory without changing the entire program.
  • Complete safety and protection device for electrical appliances security to operate, no harm for the operator.
  • Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.

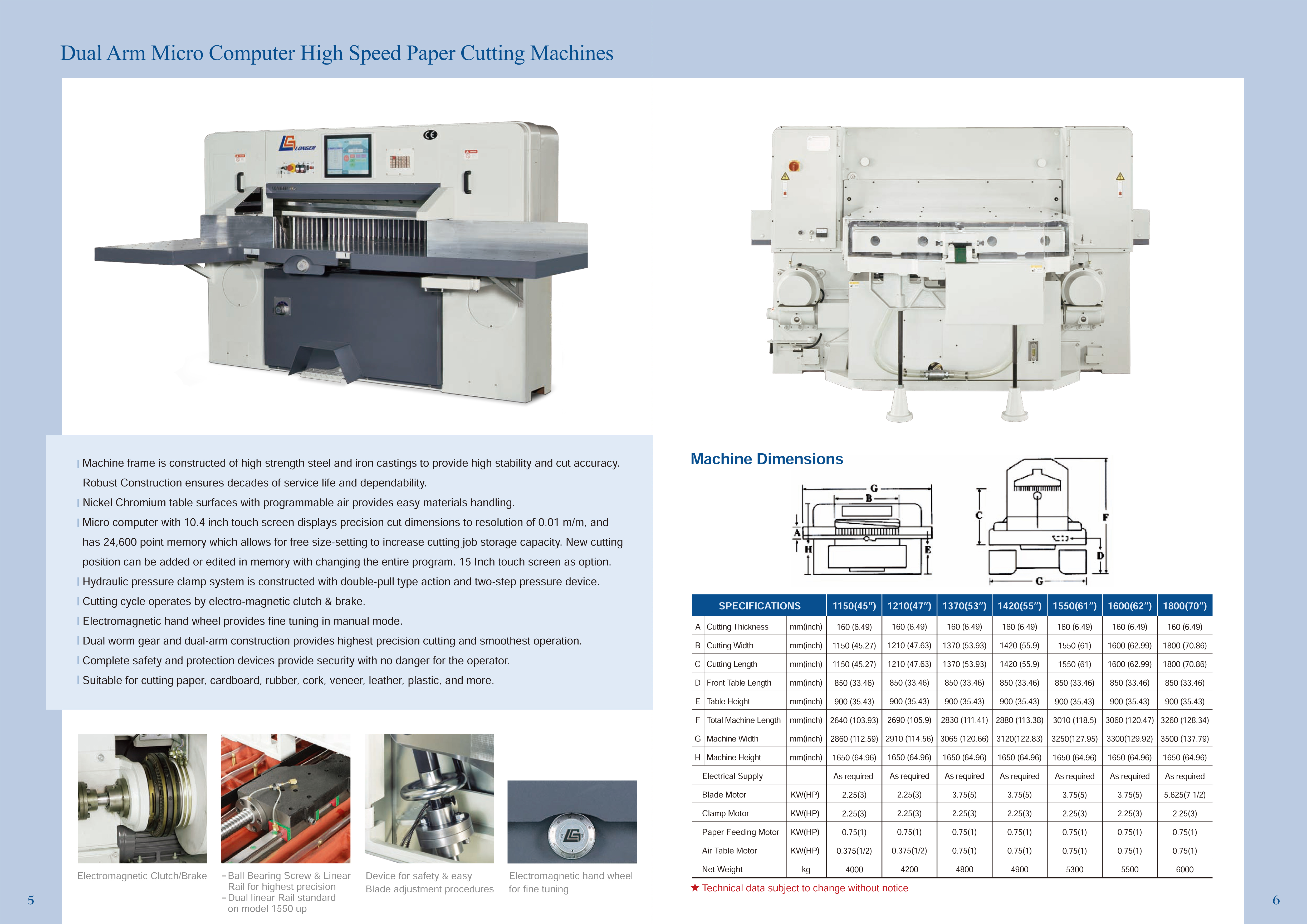

Specification 1150 (45") 1210 (47") 1370 (53") 1420 (55") 1550 (61") 1600 (62") 1800 (70")
A Cutting Thickness mm/inch 160 (6.49) 160 (6.49) 160 (6.49) 160 (6.49) 160 (6.49) 160 (6.49) 160 (6.49)
B Cutting Width mm/inch 1150 (45.27) 1210 (47.63) 1370 (53.93) 1420 (55.9) 1550 (61) 1600 (62.99) 1800 (70.86)
C Cutting Length mm/inch 1150 (45.27) 1210 (47.63) 1370 (53.93) 1420 (55.9) 1550 (61) 1600 (62.99) 1800 (70.86)
D Front Table Length mm/inch 850 (33.46) 850 (33.45) 850 (33.45) 850 (33.45) 850 (33.45) 850 (33.46) 850 (33.46)
E Table Height mm/inch 900 (35.43) 900 (35.43) 900 (35.43) 900 (35.43) 900 (35.43) 900 (35.43) 900 (35.43)
F Total Machine Length mm/inch 2640 (103.93) 2690 (105.9) 2830 (111.41) 2880 (113.38) 3010 (118.5) 3060 (120.47) 3260 (128.34)
G Machine Width mm/inch 2860 (112.59) 2910 (114.56) 3065 (120.66) 3120 (122.83) 3250 (127.95) 3300 (129.92) 3500 (137.79)
H Machine Height mm/inch 1650 (64.96) 1650 (64.96) 1650 (64.96) 1650 (64.96) 1650 (64.96) 1650 (64.96) 1650 (64.96)
Electrical Supply   As required As required As required As required As required As required As required
Blade Motor KW(HP) 2.25(3) 2.25(3) 3.75(5) 3.75(5) 3.75(5) 3.75(5) 5.625(7 1/2)
Clamp Motor KW(HP) 2.25(3) 2.25(3) 2.25(3) 2.25(3) 2.25(3) 2.25(3) 2.25(3)
Paper Feeding Motor KW(HP) 0.75(1) 0.75(1) 0.75(1) 0.75(1) 0.75(1) 0.75(1) 0.75(1)
Air Table Motor* KW(HP) 0.375(1/2) 0.375(1/2) 0.75(1) 0.75(1) 0.75(1) 0.75(1) 0.75(1)
Net Weight KG 4000 4200 4800 4900 5300 5500 6000
*Technical data to change without notice
