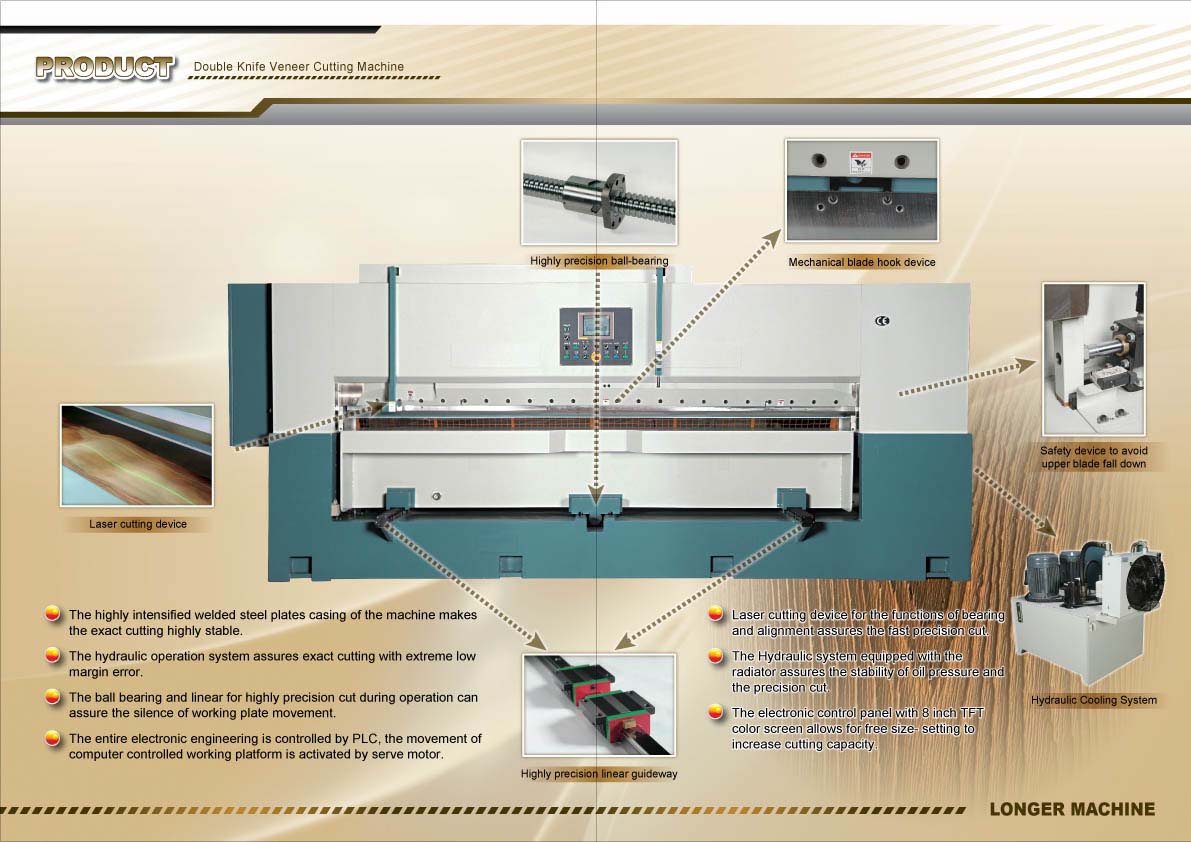

 Highly precision ball-bearing |
 Highly precision linear guideway |
 Safety device to avoid upper blade fall down |
 Laser cutting device |
 Mechanical blade hook device |

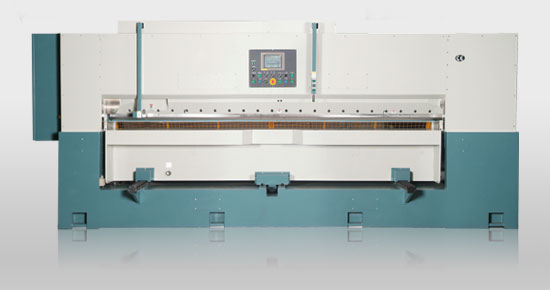

- The highly intensified welded steel plates casing of the machine makes the exact cutting highly stable.
- The hydraulic operation system assures exact cutting with extreme low margin error.
- The ball bearing and linear for highly precision cut during operation can assure the silence of working plate movement.
- The entire electronic engineering is controlled by PLC, the movement of computer controlled working platform is activated by serve motor.
- Laser cutting device for the functions of bearing and alignment assures the fast precision cut.
- The Hydraulic system equipped with the radiator assures the stability of oil pressure and the precision cut.
- The electronic control panel with 8 inch TFT color screen allows for free size- setting to increase cutting capacity.

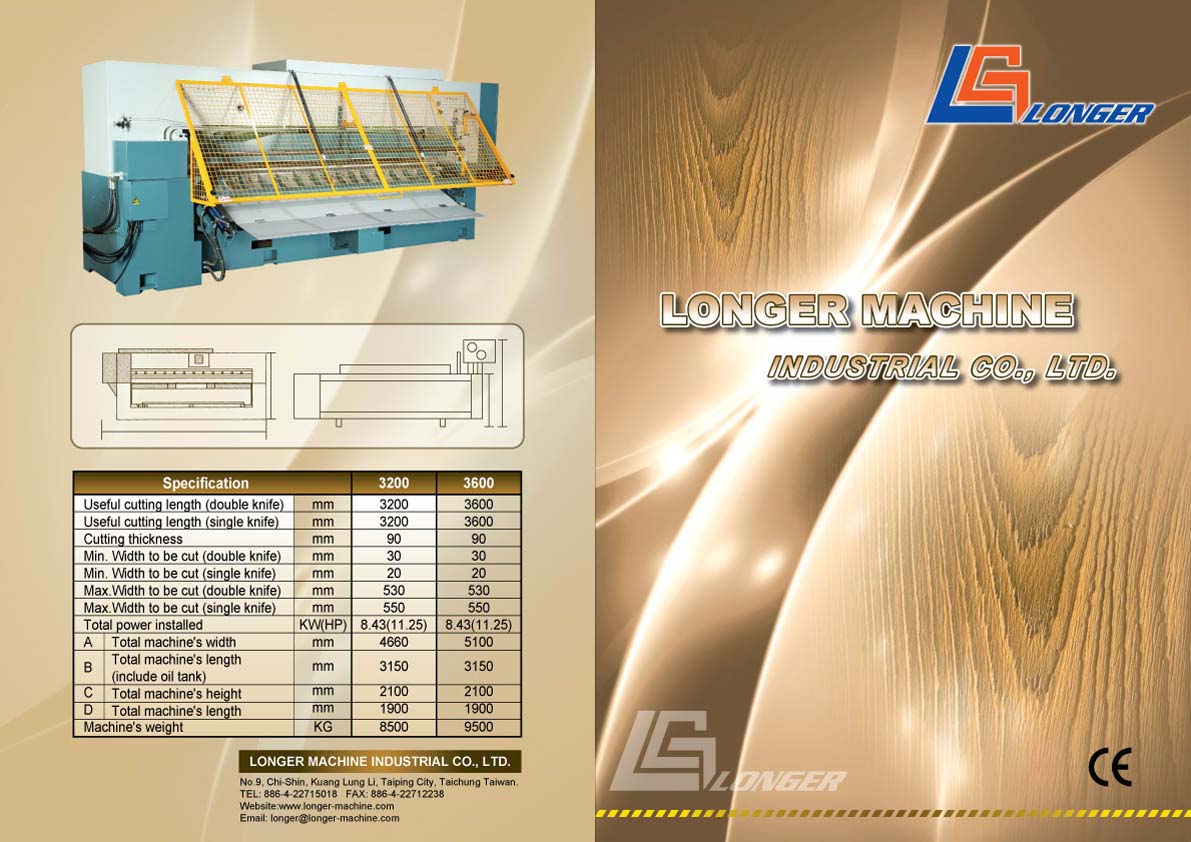

| Specification | 3200 | 3600 | ||
|---|---|---|---|---|
| Useful cutting length (double knife) | mm | 3200 | 3600 | |
| Useful cutting length (single knife) | mm | 3200 | 3600 | |
| Cutting thickness | mm | 90 | 90 | |
| Min. Width to be cut (double knife) | mm | 30 | 30 | |
| Min. Width to be cut (single knife) | mm | 20 | 20 | |
| Max.Width to be cut (double knife) | mm | 530 | 530 | |
| Max.Width to be cut (single knife) | mm | 550 | 550 | |
| Total power installed | KW(HP) | 10.875(14.5) | 10.875(14.5) | |

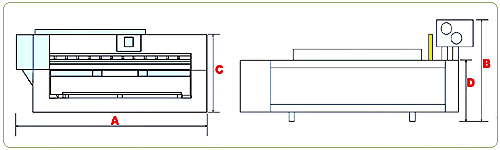

| A | Total machine's width | mm | 4660 | 5100 |
| B | Total machine's length (include oil tank) |
mm | 3150 | 3150 |
| C | Total machine's height | mm | 2100 | 2100 |
| D | Total machine's length | mm | 1900 | 1900 |
| Machine's weight | KG | 8500 | 9500 | |
*Technical data to change without notice
