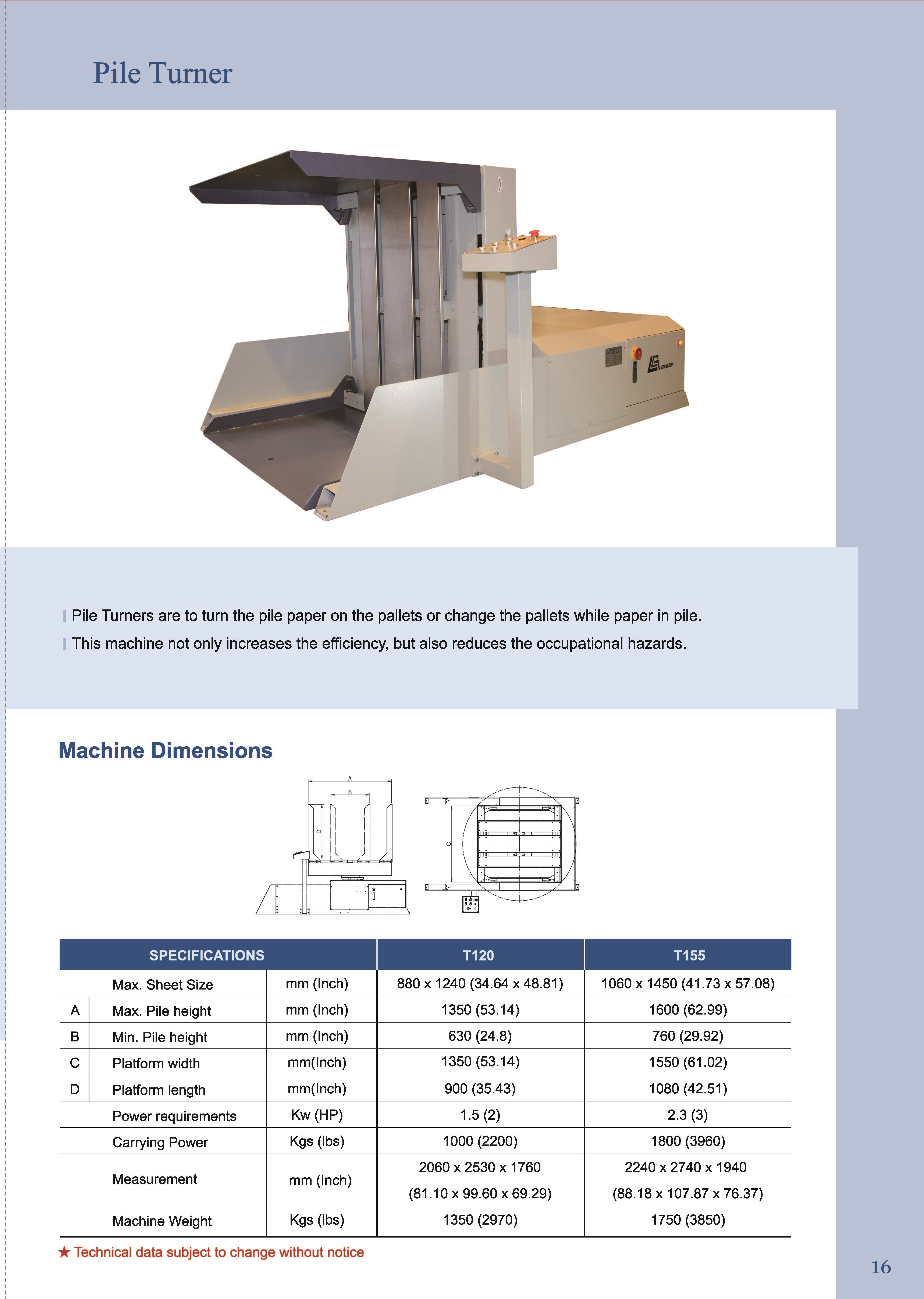

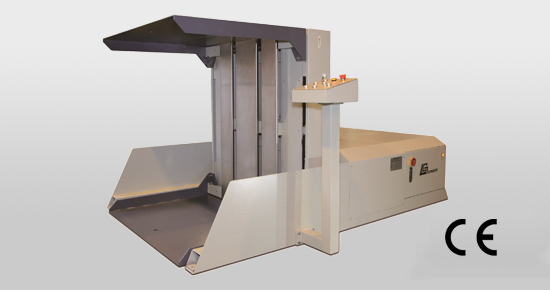

- Pile Turners are to turn the pile paper on the pallets or change the pallets while paper in pile. This machine not only increases the efficiency, but also reduces the occupational hazards.

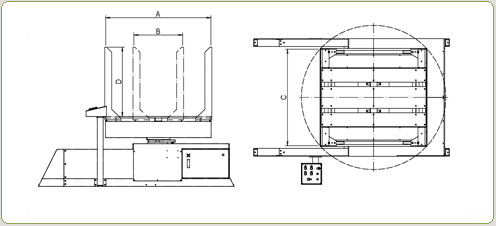

| Specification | T-120 | T-155 | T-180 | ||
|---|---|---|---|---|---|
| A | Max. Pile height (including 2 pallets) | mm(inch) | 1350 (53.14) | 1600 (62.99) | 1660 (62.99) |
| B | Min. Pile height (including 2 pallets) | mm(inch) | 630 (24.8) | 760 (29.92) | 760 (29.92) |
| C | Platform width | mm(inch) | 1350 (53.14) | 1550 (61.02) | 1800 (70.86) |
| D | Platform length | mm(inch) | 900 (49.21) | 1080 (42.51) | 1250 (49.21) |
| Power requirements | Kw (HP) | 1.5 (2) | 1.5 (2) | 1.5 (2) | |
| Carrying Power | Kgs (lbs) | 1000 (2200) | 1800 (3960) | 2000 (4400) | |
| Measurement | mm(inch) | 2060 x 2530 x 1760 |
2240 x 2740 x 1940 |
2585 x 3200 x 2320 |
|
| Machine Weight | Kgs (lbs) | 1350 (2970) | 2400 (5280) | 2600 (5720) | |
*Technical data to change without notice
