 -Linear Rail for precise cut accuracy |
 8.4 inch touch screen |
 Electromagnetic hand wheel for fine tuning |
 |
- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust Construction ensures stable operation and exactly cut off.
- Inverter-controlled computer with 8.4 inch touch screen highly precision cut for 0.01m/m.
- Colorful touch screen with 24,600 point memory allows for free size-setting to increase cutting capacity.
- Cutting operation by worm wheel shaft. Cutting knife is driven by worm gear; providing excellent cutting accuracy.
- Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
- Electromagnetic hand wheel fine tuning
- Special sizes and new-system sizes can be keyed-in during operation, convenient for the cutting of all kinds of paper.
- New cutting size can be added to memory without changing the entire program.
- Hydraulic operation assures quiet cutting.
- Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.

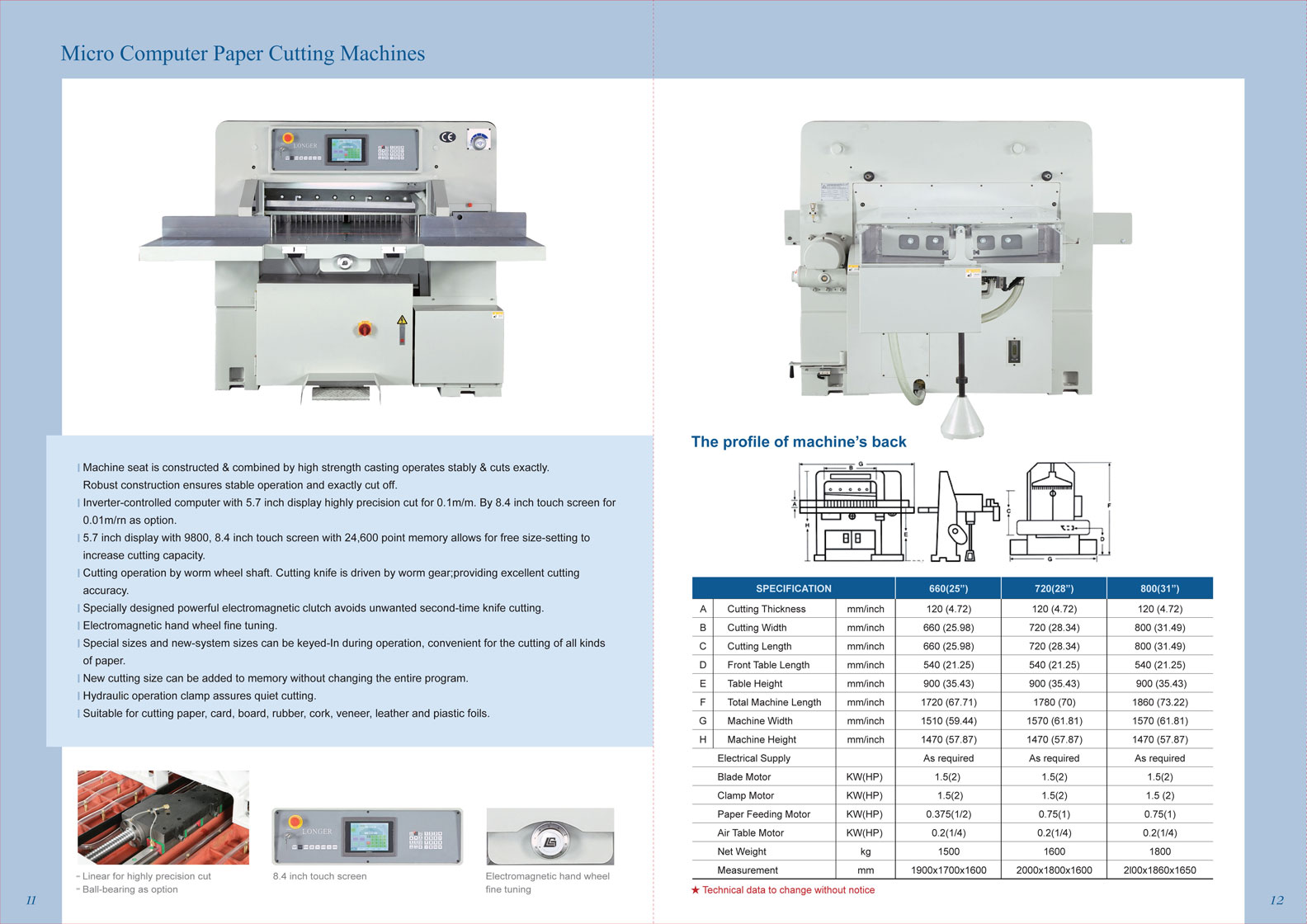

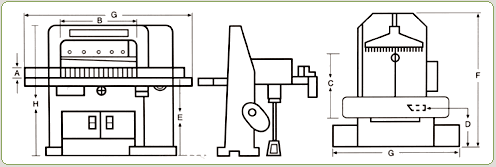

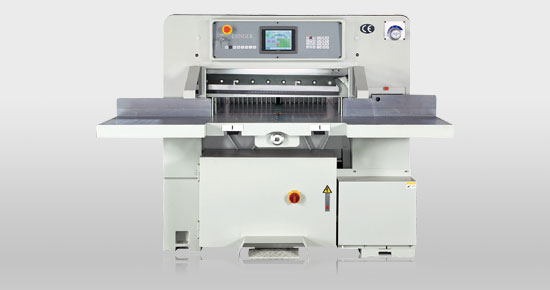

| Specification | 660 (25") | 720 (28") | 800 (31") | ||
|---|---|---|---|---|---|
| A | Cutting Thickness | mm/inch | 120 (4.72") | 120 (4.72") | 120 (4.72") |
| B | Cutting Width | mm/inch | 660 (25.98") | 720 (28.34") | 800 (31.49") |
| C | Cutting Length | mm/inch | 660 (25.98") | 720 (28.34") | 800 (31.49") |
| D | Front Table Length | mm/inch | 540 (21.25") | 540 (21.25") | 540 (21.25") |
| E | Table Height | mm/inch | 900 (35.43") | 900 (35.43") | 900 (35.43") |
| F | Total Machine Length | mm/inch | 1720 (67.71") | 1780 (70") | 1860 (73.22") |
| G | Machine Width | mm/inch | 1510 (59.44") | 1570 (61.81") | 1570 (61.81") |
| H | Machine Height | mm/inch | 1470 (57.87") | 1470 (57.87") | 1470 (57.87") |
| Electrical Supply | As required | As required | As required | ||
| Blade Motor | KW(HP) | 1.5(2) | 1.5(2) | 1.5(2) | |
| Clamp Motor | KW(HP) | 1.5(2) | 1.5(2) | 1.5(2) | |
| Paper Feeding Motor | KW(HP) | 0.375(1/2) | 0.75(1) | 0.75(1) | |
| Air Table Motor* | KW(HP) | 0.2(1/4) | 0.2(1/4) | 0.2(1/4) | |
| Net Weight | kg | 1500 | 1600 | 1800 | |
| Measurement | mm | 1900x1700x1600 | 2000x1800x1600 | 2100x1860x1650 | |
 |

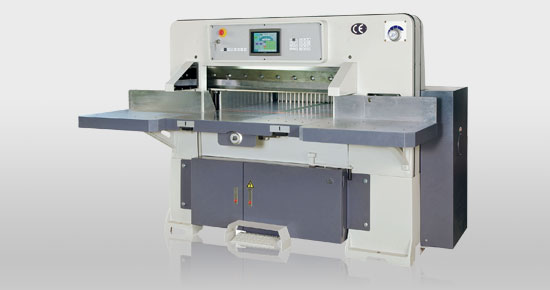

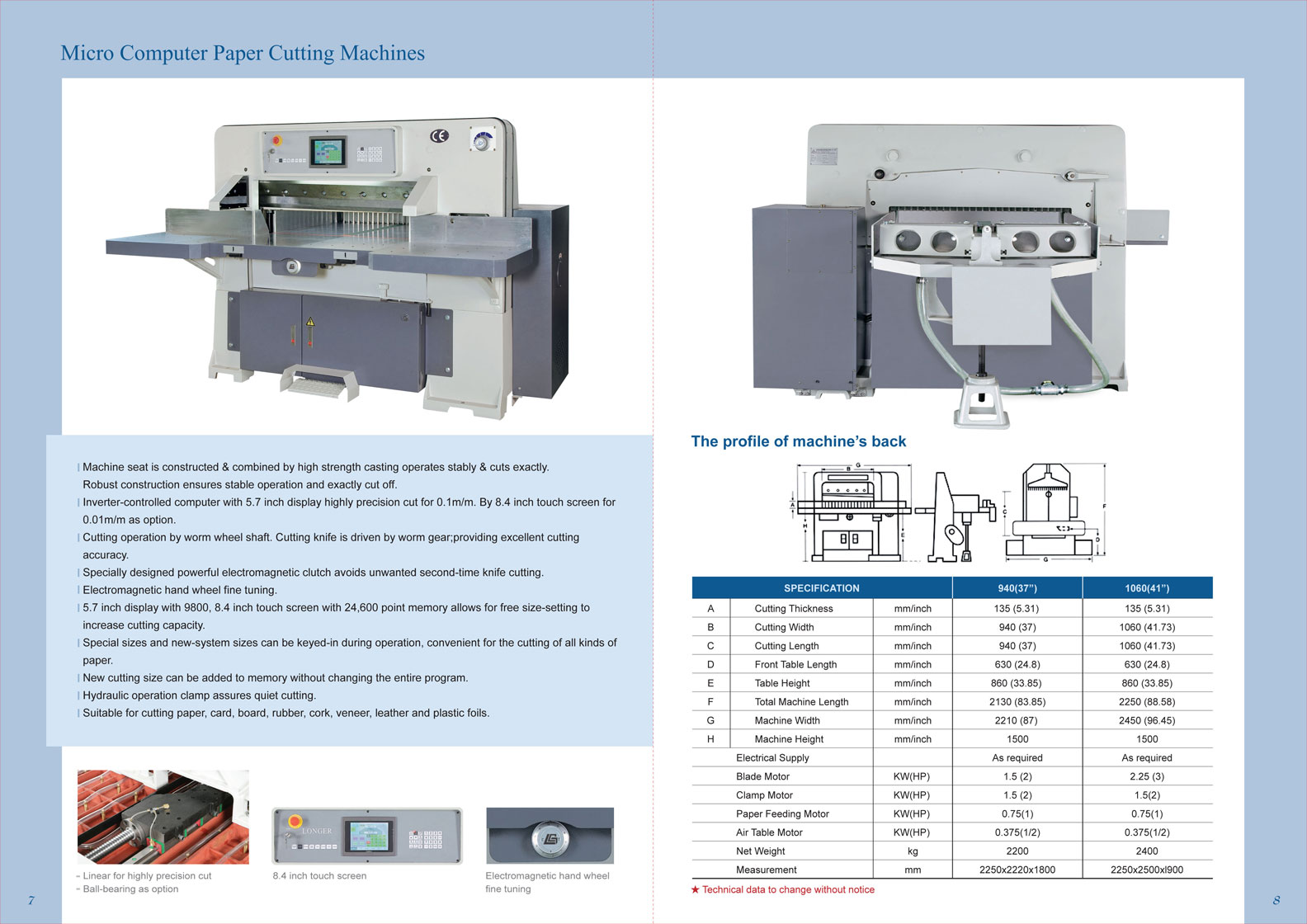

| Specification | 940 (37") | 1060 (41") | ||
|---|---|---|---|---|
| A | Cutting Thickness | mm/inch | 135 (5.31") | 135 (5.31") |
| B | Cutting Width | mm/inch | 940 (37") | 1060 (41.73") |
| C | Cutting Length | mm/inch | 940 (37") | 1060 (41.73") |
| D | Front Table Length | mm/inch | 630 (24.8") | 630 (24.8") |
| E | Table Height | mm/inch | 900 (35.43") | 900 (35.43") |
| F | Total Machine Length | mm/inch | 2130 (83.85") | 2250 (88.58") |
| G | Machine Width | mm/inch | 2210 (87") | 2450 (96.45") |
| H | Machine Height | mm/inch | 1500 | 1500 |
| Electrical Supply | As required | As required | ||
| Blade Motor | KW(HP) | 1.5(2) | 2.25(3) | |
| Clamp Motor | KW(HP) | 1.5(2) | 1.5(2) | |
| Paper Feeding Motor | KW(HP) | 0.75(1) | 0.75(1) | |
| Air Table Motor* | KW(HP) | 0.375(1/2) | 0.375(1/2) | |
| Net Weight | kg | 2200 | 2400 | |
| Measurement | mm | 2250x2220x1800 | 2250x2500x1900 | |
