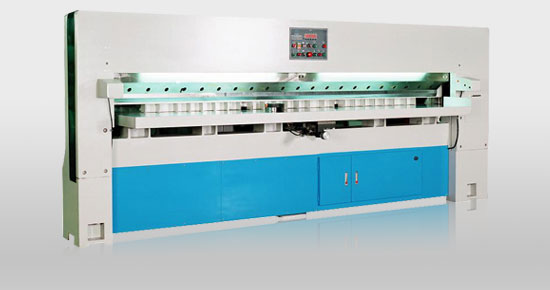

Our core products are veneer cutting machines, We have a wide variety of them available, with all dimensions prepared, If you can't find any of them you want, We can help you customize the machine you want.
- The machine is constructed by high strength casting and iron plate. Cutting operation is driven by mechanical working system which is single-crank pulling type; providing excellent cutting accuracy. Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
- Upward and downward clamping is powered by hydraulic operation assures cutting.
- There are several switches for different functions on the control panel for you to choose from.
- The millimeter counter can help you to set the size you need.
- You can choose the single manual operation or the automatic function to cut veneer, It's optional.
- The safety sensor insures operator's safety.

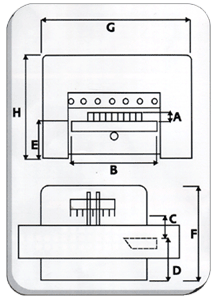

| Specification | 1800 | 2700 | 3100 | |
|---|---|---|---|---|
| A | Cutting Thickness | 75 m/m | 75 m/m | 75 m/m |
| B | Cutting width | 1800 m/m | 2700 m/m | 3100 m/m |
| C | Cutting Length | 600 m/m | 600 m/m | 600 m/m |
| D | Front table length | 450 m/m | 450 m/m | 450 m/m |
| E | Table Height | 850 m/m | 850 m/m | 850 m/m |
| F | Total Machine Length | 1600 m/m | 1600 m/m | 1600 m/m |
| G | Machine Width | 2700 m/m | 3600 m/m | 4000 m/m |
| H | Machine Height | 1600 m/m | 1600 m/m | 1600 m/m |
| I | Electrical Supply | As required | As required | As required |
| J | Machine's weight | 2900 | 3400 | 3900 |
| Blade Motor | 5 | 5 | 5 | |
| Clamp Motor | 3 | 3 | 3 | |
| Veneer feeding motor | 1 | 1 | 1 | |
*Technical data to change without notice
