• Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust Construction ensures stable operation and exactly cut off.
  • Cutting operation by worm wheel shaft. Cutting knife is driven by worm gear; providing excellent cutting accuracy.
  • Specially designed powerful electromagnetic clutch avoids unwanted second-time knife cutting.
  • 2000-point memory allows for free size-setting to increase cutting capacity.
  • Special sizes and new-system sizes can be keyed-in during operation, convenient for the cutting of all kinds of material.
  • New cutting size can be added to memory without changing the entire program.
  • Hydraulic operation assures quiet cutting.
  • Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.

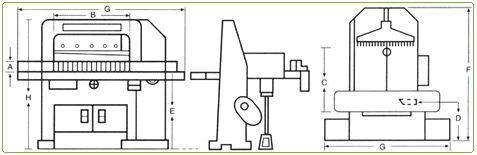

Specification 940C 1060C
A Cutting Thickness 135 mm 135 mm
B Cutting Width 940 mm 1060 mm
C Cutting Length 800 mm 800 mm
D Front Table Length 630 mm 630 mm
E Table Height 860 mm 860 mm
F Total Machine Length 2030 mm 2030 mm
G Machine Width 2210 mm 2450 mm
H Machine Height 1530 mm 1560 mm
Electrical Supply As required As required
Blade Motor 2 HP 3 HP
Clamp Motor 2 HP 2 HP
Paper Feeding Motor 1 HP 1 HP
Net Weight (kg) 2200 2400
Measurement (mm) 2250x2220x1800 2280x2530x1900
*Technical data to change without notice

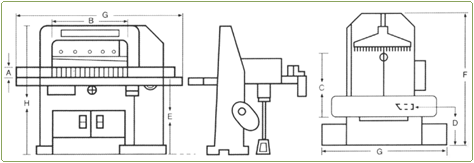

Specification 1210C 1320C 1510C 1660C
A Cutting Thickness 140 mm 140 mm 140 mm 140 mm
B Cutting Width 1210 mm 1320 mm 1510 mm 1660 mm
C Cutting Length 800 mm 800 mm 800 mm 800 mm
D Front Table Length 600 mm 600 mm 600 mm 600 mm
E Table Height 850 mm 850 mm 850 mm 850 mm
F Total Machine Length 2500 mm 2500 mm 2800 mm 2800 mm
G Machine Width 2800 mm 3000 mm 3020 mm 3020 mm
H Machine Height 1700 mm 1700 mm 1700 mm 1700 mm
Electrical Supply As required As required As required As required
Blade Motor 3 HP 3 HP 5 HP 5 HP
Clamp Motor 3 HP 3 HP 3 HP 3 HP
Paper Feeding Motor 1 HP 1 HP 1 HP 1 HP
Net Weight (kg) 3200 3300 3600 3700
*Technical data to change without notice
