 10.4 inch touch screen as standard |
 Optional: 15 inch touch screen |
|
 -Ball-bearing Screw and Linear Rail for repeatability & accuracy -Dual linear Rail as option |
 Device for Safety and easy Blade adjustment procedures |
|
 Hard Casting worm-gear assures quiet cutting |
 Electromagnetic hand wheel for fine tuning |

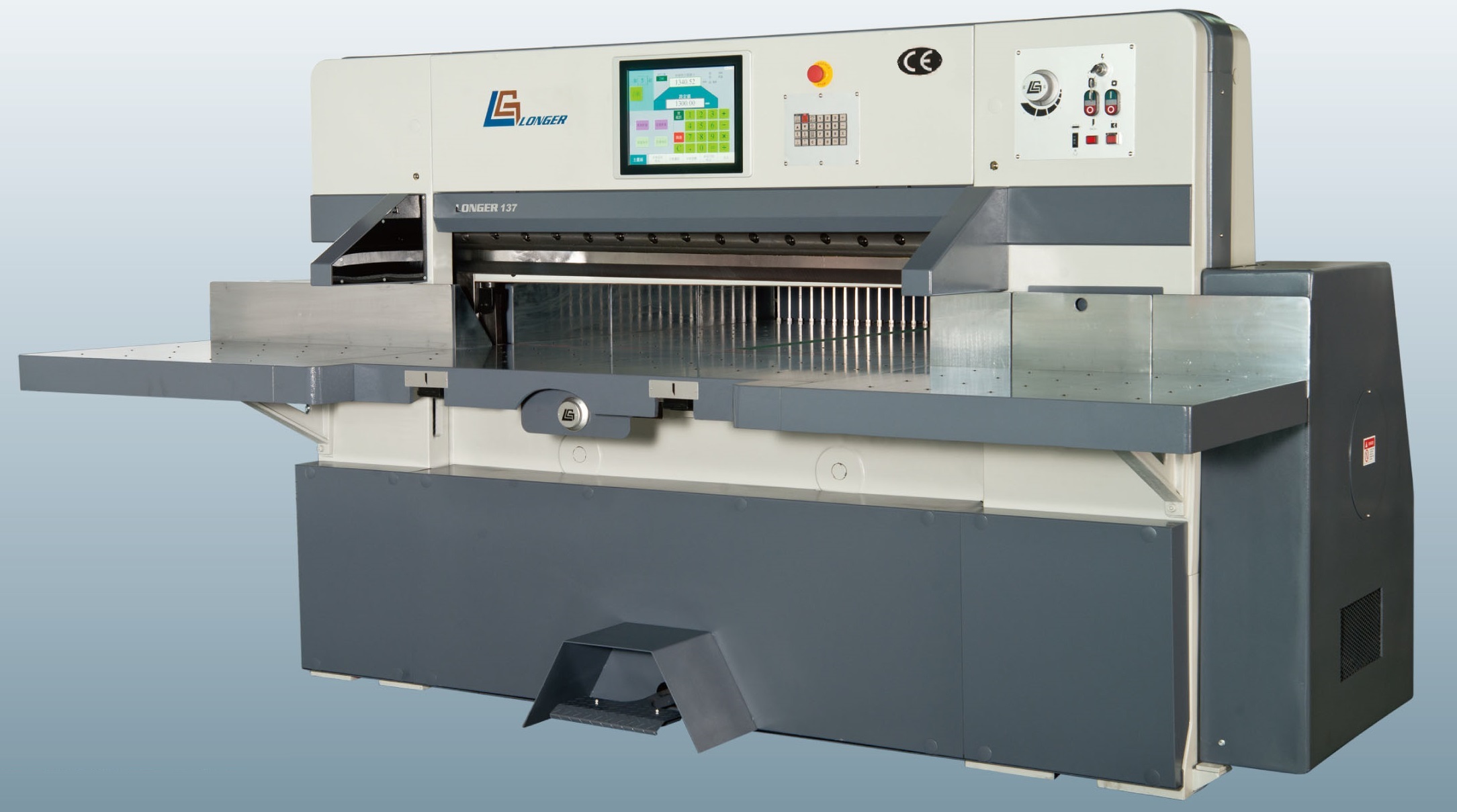

- Machine seat is constructed & combined by high strength casting operates stably & cuts exactly. Robust Construction ensures stable operation and exact cut off.
- Inverter-controlled computer with 10.4 inch touch screen highly precision cut for 0.01m/m. 15 inch touch screen as option.
- Colorful touch screen with 24,600 point memory allows for free size-setting to increase cutting capacity.
- Hydraulic system is devised with double-pull type and two-step hydraulic device.
- Operates by electro-magnetic clutch & brake.
- Electromagnetic hand wheel fine tuning.
- Single worm gear, Single-arm cutting design for speedy and quick cutting.
- New cutting size can be added to memory without changing the entire program.
- Complete safety and protection device for electrical appliances security to operate, no harm for the operator.
- Suitable for cutting paper, card, board, rubber, cork, veneer, leather and plastic foils.

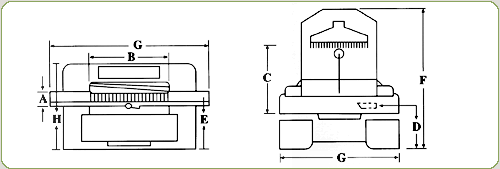

| Specification | 1150 (45") | 1370 (53") | ||
|---|---|---|---|---|
| A | Cutting Thickness | mm/inch | 160 (6.49") | 160 (6.49") |
| B | Cutting Width | mm/inch | 1150 (45.27") | 1370 (53.93") |
| C | Cutting Length | mm/inch | 1150 (45.27") | 1370 (53.93") |
| D | Front Table Length | mm/inch | 870 (34.25") | 870 (34.25") |
| E | Table Height | mm/inch | 900 (35.43") | 900 (35.43") |
| F | Total Machine Length | mm/inch | 2640 (103.93") | 2830 (111.41") |
| G | Machine Width | mm/inch | 2860 (112.59") | 3065 (120.66") |
| H | Machine Height | mm/inch | 1670 (65.74") | 1670 (65.74") |
| Electrical Supply | As required | As required | ||
| Main Motor | KW(HP) | 5.625(7 1/2) | 5.625(7 1/2) | |
| Paper Feeding Motor | KW(HP) | 0.75(1) | 0.75(1) | |
| Air Table Motor* | KW(HP) | 0.375(1/2) | 0.75(1) | |
| Net Weight | KG | 3700 | 4200 | |
