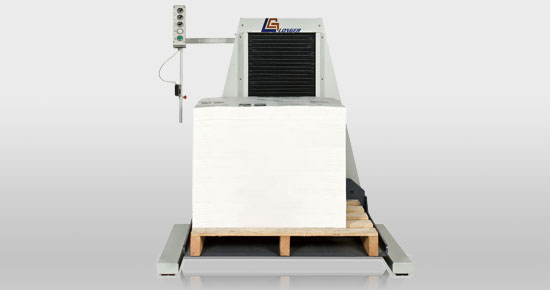

- Hydraulic lifting machine is suitable for the paper cutting machine.
- The cutting machine and hydraulic lifting machine can be independently operational.
- Complete operation safety, totally safe for operator.
- The function of sensor is adjustable upward and downward.
- Efficient in cutting and saving man power.

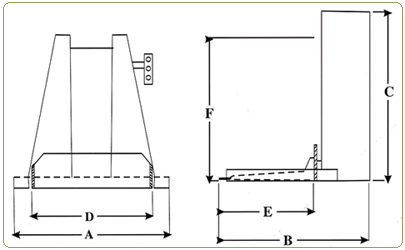

| Specification | LG-A120 | LG-A145 | LG-A170 | ||
|---|---|---|---|---|---|
| (A) | Machine's length | [mm| in] | 1600 (62.99) | 1780 (70.07) | 2060 (81.10) |
| (B) | Machine's width | [mm| in] | 1190 (46.85) | 1450 (57.08) | 1910 (75.19) |
| (C) | Machine's height | [mm| in] | 1440 (56-69) | 1440 (56-69) | 1563 (61.41) |
| (D) | The length of paper-feeding lift | [mm| in] | 1270 (50) | 1450 (57.08) | 1820 (71.65) |
| (E) | The width of paper-feeding lift | [mm| in] | 840 (33.07) | 1100 (43.30) | 1350 (53.14) |
| The maximum height of paper-feeding lift | [mm| in] | 850 (33.46) | 850 (33.46) | 850 (33.46) | |
| The max loading | [kg| Ibs] | 1200 (2,640) | 2000 (4,409) | 2000 (4,409) | |
| The total power | KW(HP) | 0.75 (1) | 1.5 (2) | 1.5 (2) | |
| Net Weight | [kg| Ibs] | 680 (1,496) | 900 (1,980) | 1,500 (3,300) | |
| Electrical Supply | As required | As required | As required | ||
*Technical data to change without notice
