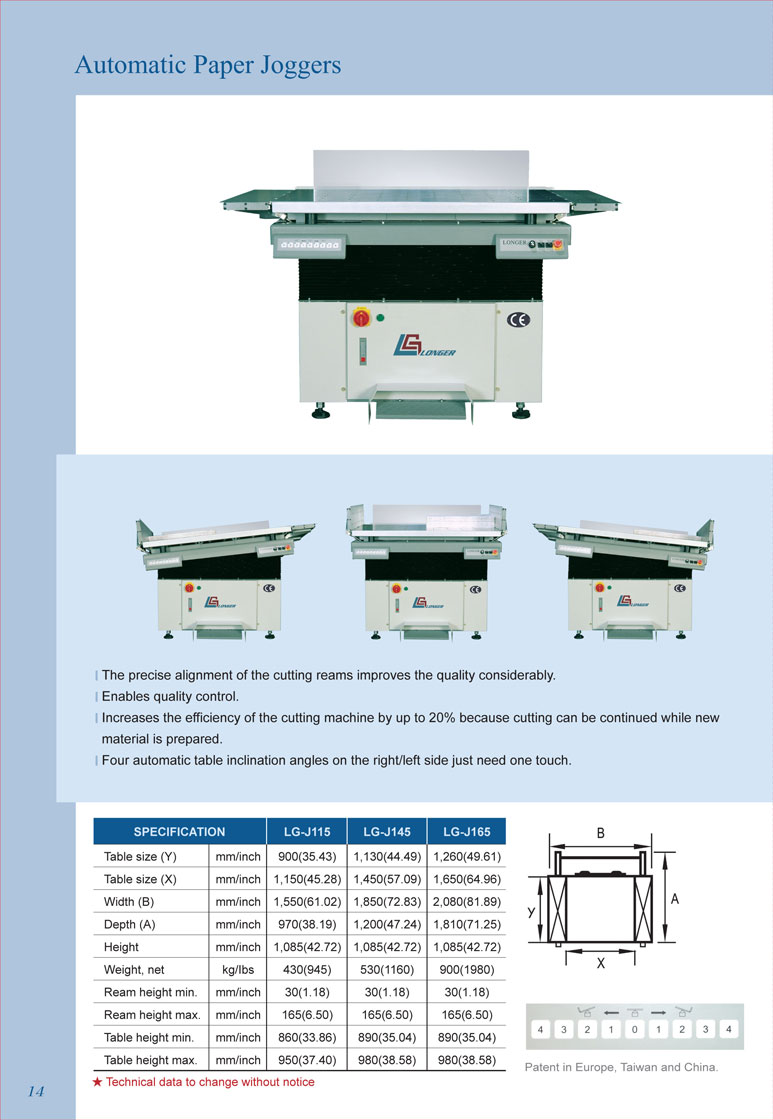

- The precise alignment of the cutting reams improves the quality considerably.
- Enables quality control
- Increases the efficiency of the cutting machine by up to 20% because cutting can be continued while new material is prepared.

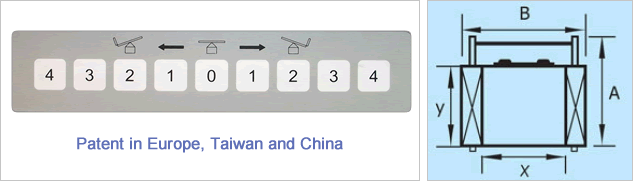

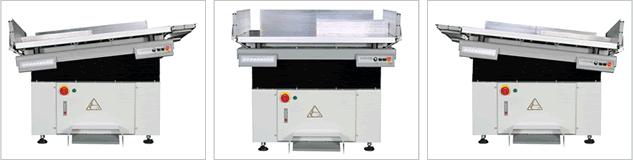

- Four automatic table inclination angles on the right/left side just need one touch.
Specification | LG-J115 | LG-J145 | LG-J165 | |
---|---|---|---|---|
Table size (Y) | [mm| in] | 900 | 35.43 | 1,130 | 44.49 | 1,260 |49.61 |
Table size (X) | [mm| in] | 1,150 | 45.28 | 1,450 | 57.09 | 1,650 | 64.96 |
Width (B) | [mm| in] | 1,550 | 61.02 | 1,850 | 72.83 | 2,080 | 81.89 |
Depth (A) | [mm| in] | 970 | 38.19 | 1,200 | 47.24 | 1,810 | 71.25 |
Height | [mm| in] | 1,085 | 42.72 | 1,085 | 42.72 | 1,085 | 42.72 |
Weight, net | [kg| Ibs] | 430 | 945 | 530 | 1160 | 900 | 1980 |
Ream height min. | [mm| in] | 30 | 1.18 | 30 | 1.18 | 30 | 1.18 |
Ream height max. | [mm| in] | 165 | 6.50 | 165 | 6.50 | 165 | 6.50 |
Table height min. | [mm| in] | 860 | 33.86 | 890 | 35.04 | 890 | 35.04 |
Table height max. | [mm| in] | 950 | 37.40 | 980 | 38.58 | 980 | 38.58 |
*Technical data to change without notice
