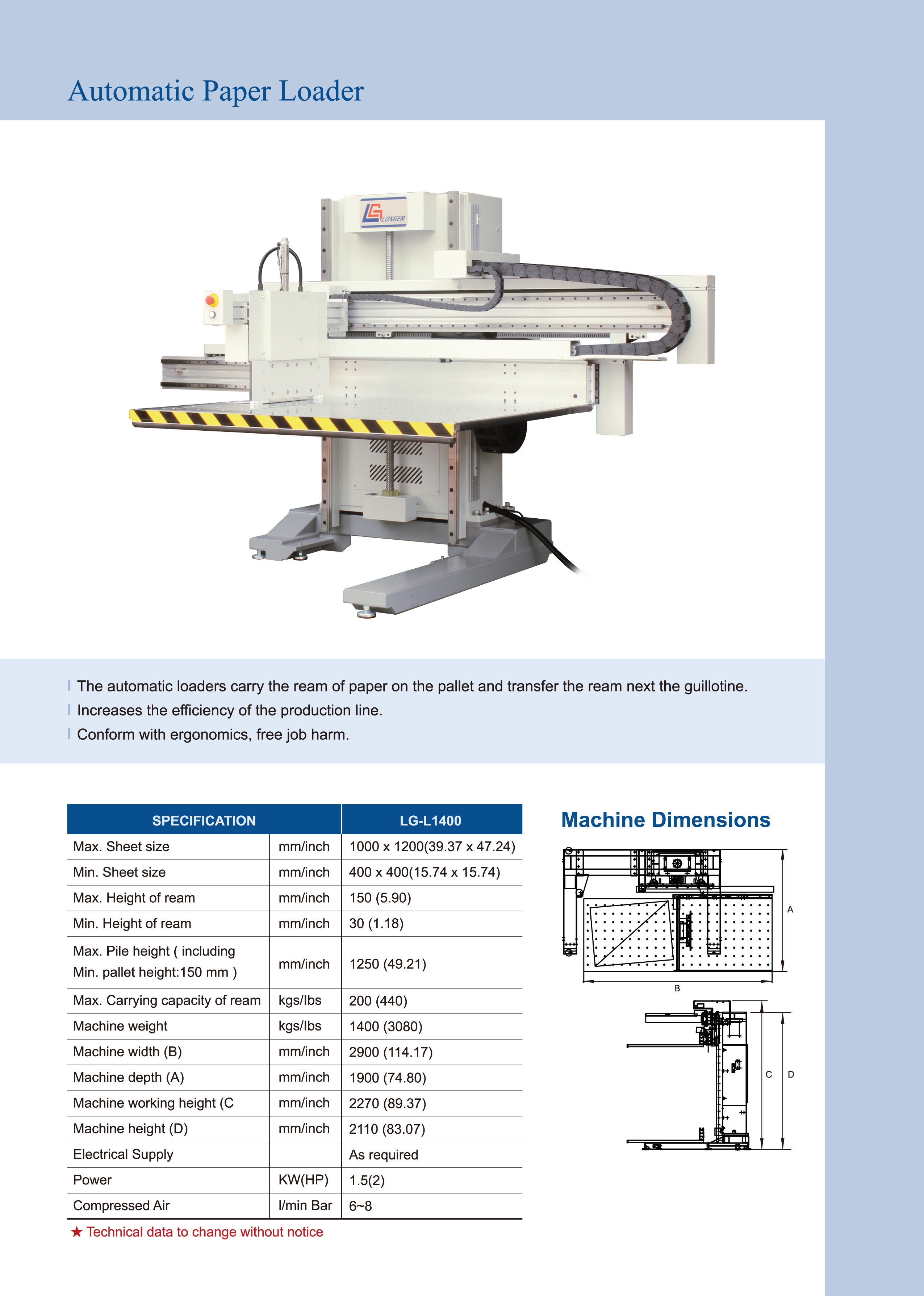

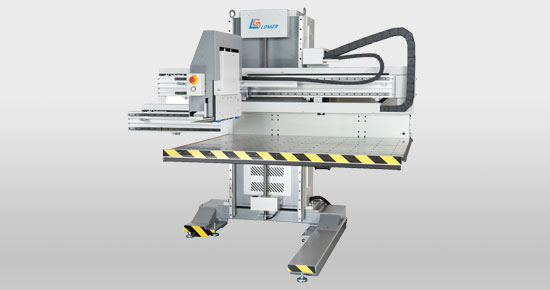

- The automatic loaders carry the ream of paper on the pallet and transfer the ream next the guillotine.
- Increases the efficiency of the production line
- Conform with ergonomics, free job harm
| Specification | LG-L1400 | LG-L1600 | LG-L1800 | |
|---|---|---|---|---|
| Max. Sheet size | mm/inch | 1200 x 1000 (47.24 x 39.37) |
1500 x 1150 (57.05 x 45.27) |
1650 x 1250 (64.96 x 49.21) |
| Min. Sheet size | mm/inch | 400 x 400 (15.74 x 15.74) |
600 x 600 (23.62 x 23.62) |
600 x 600 (23.62 x 23.62) |
| Max. Height of ream | mm/inch | 150 (5.90) | 150 (5.90) | 150 (5.90) |
| Min. Height of ream | mm/inch | 30 (1.18) | 30 (1.18) | 30 (1.18) |
| Max. Pile height ( including Min. pallet height:150 mm ) |
mm/inch | 1250 (49.21) / 1550 (61.02) |
1550 (61.02) | 1550 (61.02) |
| Max. Carrying capacity of ream | kgs/Ibs | 200 (440) | 250 (550) | 300 (661) |
| Machine weight | kgs/Ibs | 1400 (3080) | 1800 (3960) | 2000 (4409) |

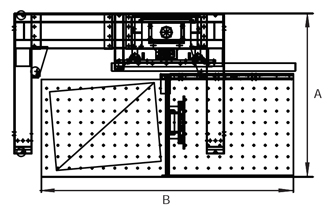

| Machine width (B) | mm/inch | 2900 (114.17) | 3100 (122.04) | 3400 (133.85) |
| Machine depth (A) | mm/inch | 1900 (74.80) | 2050 (80.7) | 2150 (84.64) |
| Machine working height (C) | mm/inch | 2270 (89.37) / 2370 (93.3) |
2270 (89.37) | 2270 (89.37) |
| Machine height (D) | mm/inch | 2110 (83.07) / 2410 (94.88) |
2410 (94.88) | 2410 (94.88) |
| Electrical Supply | As required | As required | As required | |
| Power | KW(HP) | 2.2(2.9) | 3 (4) | 3 (4) |
| Compressed Air | l/min Bar | 6~8 | 6~8 | 6~8 |
※Technical data to change without notice
